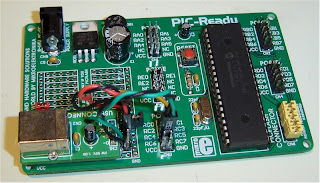

The electronics needed for the simulator is a combination of ready made boards and self made PC Boards and circuits.  The self-made circuits are mainly designed around the PIC18F4550 microcontroller made by Microchip.  I chose this microcontroller because it has 40 pins and most importantly it is USB enabled.


Components

The following components will be build:
Showing 16 items
ComponentPurposeProgressDetails Page
Sort

Sort

Sort

Sort

Angle of Attack Indexer View the Angle of attack of the aircraft when gear is down 0% Angle of Attack Indicator
Autopilot Panel Contains the switches for the autopilot operation 0% Autopilot Panel
Course Selector Select a course on the PFD 33%
Environment Panel Control the environment settings 30%
Flap Lever Controls the flaps settings 10%
Flight Control - Rudder Controls the yaw axis and steering on the ground 0%
Flight Controls - Elevator & Ailerons Controls the roll and pitch axis 20%
Gear Lever and Lights Controls the undercarriage and view its position using a series of red and green indicators 33%
Heading Selector Selects the heading bug value on the PFD 33%
Left Main Switch Panel Contains most of the left side's switches 20%
Oxygen Panel Contains the oxygen controls 30%
Power Control Lever (PCL) Controls the engine power and cut the engine 15%
Right Main Switch Panel  Contains most of the right hand side's switches light dimmers 30% Right Main Switch Panel
Standby COM Radio The standby VHF voice transceiver 50% Standby Radios
Standby NAV Radio Standby VHF NAV Radio 50% Standby Radios
Trim Indicators View the trim settings for each of the 3 axis 30% Trim Indicators
