 Objective
The objective of this task is to create a Com2 and Nav2 standby radio. It should interface with a PC via USB. In turn the USB data should be interfaced with Flight Simulator using SimConnect. A PIC18F4550 microcontroller will be used for the task.
Prototype

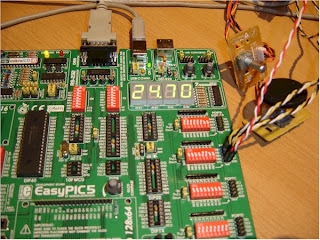

Below is a photo of the PIC USB Radio on the EasyPIC5 development board.
The simulated frequency shows as 24.70 which represents the COM2 frequency of 124.70 MHz (Windhoek Area / Information Center). On the real radio there will be 5 x seven segment LEDs. A "1" will be put in front. On the left of the board, the 40-pin PIC18F4550 can be seen.
Construction
The construction are done in several parts:
- Radio USB Controller Board;
- 7 Segment LED Board;
- Rotary Encoder Filter Board.
Radio USB Controller Board
[Added soon]
7 Segment LED Board
A Maxim MAX7219 IC is used to receive serial (SPI) data from the PIC microcontroller. The 8 x 7 segment LEDs is then lit up displaying the Active- and Standby frequencies. The 2 x 7 segment LEDs containing the "1" part of the frequencies cannot be handled by the MAX7219, so they are connected directly to the power via resistors to limit the current.
